CHP Eddi3 4x12 EV

CHP Eddi3 4x12 EV

Choptones Supercab IR Library created by capturing a EVH* 5150III 4x12 with Celestion* G12-EVH speakers

Eddi3 4x12 EV

Eddi3 4x12 EV - Supercab IR Library

Eddi3 4x12 EV is the Choptones Supercab IR Library created by capturing a EVH* 5150III 4x12 with Celestion* G12-EVH speakers.

It is an extensive and systematic capture created with 12 microphones, 8 to 16 positions each microphone and multiple Mic preamps, for more than 300 IRs globally.

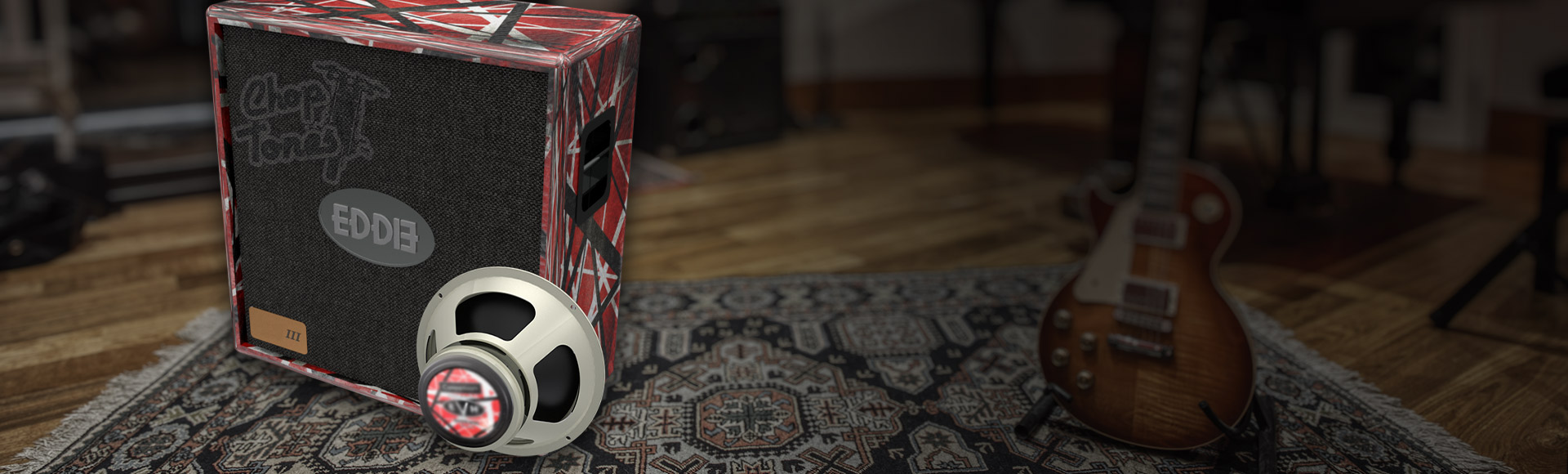

The cabinet is straight front, closed back, 7-ply Birch/Pine plywood construction, really solid and nice enclosure with enormous tone. The speaker, the EVH* acronym leaves no doubt, this is a faithfully inspired early era Greenback used from Eddie to create is treadmark guitar tone. A 20 watt tone monster.
Captures are performed with a motorized mic stand in order to have consistent measurements across libraries.

DISCOVER THE ENTIRE COLLECTION

The SuperCabinet offers a wide collection of IR libraries, including the Official Jensen Speakers IRs, Choptones and The Cab Factory.
Any single library in the collection is created after an extensive sampling and editing work, seeking the perfection in every capturing step.

Category


GET MORE, SAVE MORE

Bundles of 3 and 10 libraries with increasing discounts are available

Made for the supercabinet

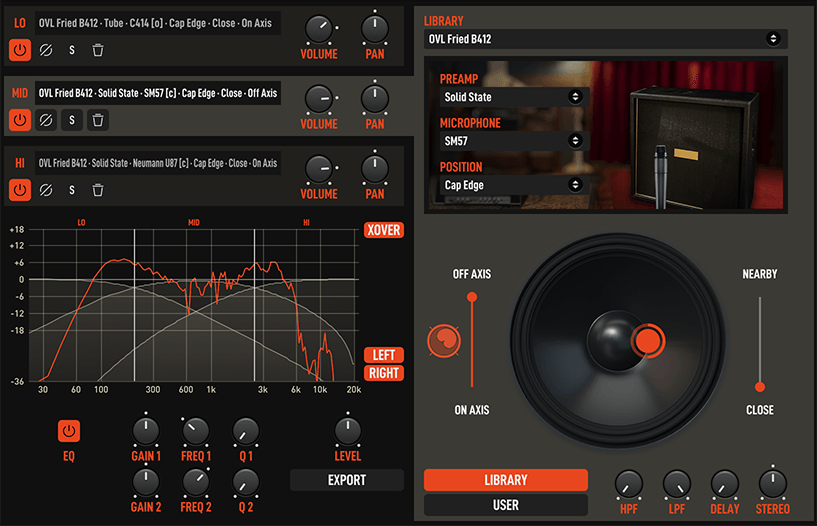

The library is created for the TH-U SuperCabinet, which allows to:

  • graphically browse the IRs in the library
  • blend them together
  • craft new cabinet tones with the unique Multiband mode
  • use the IR in the software
  • export the IRs in .wav, compatible with the software IR loaders and all the major hardware modelers

Specifications

The microphones used during the capturing session are:

  • AKG* C414
  • Audio Technica* 2035
  • Audix* i5
  • Beyerdynamic* M160
  • Electrovoice* RE20
  • Neumann* U87
  • Royer* 121
  • Sennheiser* MD21
  • Sennheiser* MD421
  • Sennheiser* MD441
  • Shure* SM7
  • Shure* SM57

Every microphone has been moved to 4 different horizontal position (Cap, Cap Edge, Cone and Cone Edge) and two distances, for a total of 8 IRs each.

For some microphones, the set of 8 measurements has been repeated with the microphone off axis (45 deg).

All the measurement set has been repeated twice, with two different Mic preamps: a Neve* 1073 and a German preamp.

GET TRIAL

You can get a 2 days demo of this library directly into the SuperCabinet component.
Just select a library from the SuperCabinet lib menu and you will be prompted to start the trial.

Library Demo


DO YOU WANT A SUPERCABINET DEMO?


* Any use of third party trademarks, logos, mentioned brand names, products and services is only referential and Overloud hereby disclaims any Sponsorship, Affiliation or Endorsement of or by any such third party.
